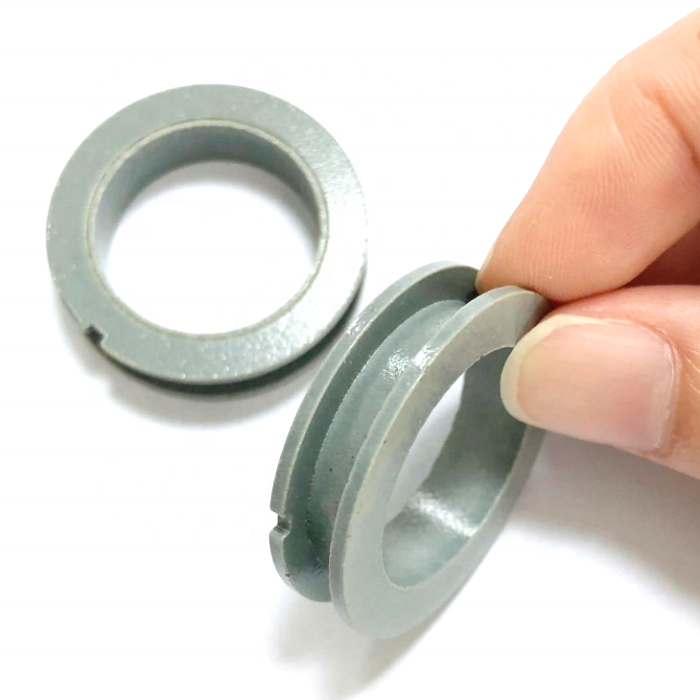

Yxg28 Yxg30 Smco Mini Ring Stator Magnet For Motor

Application

The strongest magnet was samarium cobalt magnet developed in Europe and America. Now both magnets are used as parts of small engines or loudspeakers. The reason why many machines can be miniaturized can also be attributed to the small and powerful magnets. It is a rare earth permanent magnet with strong corrosion resistance and oxidation resistance. Due to the high price of materials, its development is limited. It is mainly used in aerospace, national defense and military industry, microwave devices, communication, medical equipment, instruments, meters, various magnetic transmission devices, magnetic processors, sensors, motors, magnetic cranes, etc.

Product Paramenters

Product Name	Yxg28 Yxg30 Smco Mini Ring Stator Magnet For Motor
Product Materials	Samarium Cobalt Magnet
Product Materials	Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet
Size of the products	Accept Customized
Working Temp	350°C
Magnetic direction	Through thickness direction, the flat surface is magnetic field.
Vertical pull force	can pull on metal board more than 19pieces A4 paper
Testing method	manual testing
Application	Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail

Specification

Grade	Max. Energy Product		Remanence		Coercive Force				Rev. Temp. Coeff.		Working Temp.	Density
	(BH)max		Br		Hc		Hci		Bd	Hd	Tw	D
	MGOe	kJ/m3	kG	mT	kOe	kA/m	kOe	kA/m	%/°C	%/°C	°C	g/cm3
SmCo5 16A	16	130	8.2	820	7.5	600	>16.0	>1270	-0.05	0.25	250	8.4
SmCo5 16B	16	130	8.2	820	7.5	600	>20.0	>1590	-0.05	0.25	250	8.4
SmCo5 18A	18	146.3	8.7	870	8.2	656	>16.0	>1272	-0.05	0.25	250	8.4
SmCo5 18B	18	146.3	8.7	870	8.2	656	>20.0	>1590	-0.05	0.25	250	8.4
SmCo5 20A	20	162.5	9	900	8.6	690	>16.0	>1272	-0.05	0.25	250	8.4
SmCo5 20B	20	162.5	9	900	8.6	690	>20.0	>1590	-0.05	0.25	250	8.4
SmCo5 22A	22	178.8	9.5	950	9.1	728	>16.0	>1272	-0.05	0.25	250	8.4
SmCo5 22B	22	178.8	9.5	950	9.1	728	>20.0	>1590	-0.05	0.25	250	8.4
Sm2Co17 24	24	195	10	1000	9.5	760	>20.0	>1590	-0.03	0.23	300	8.3
Sm2Co17 26A	26	211.3	10.6	1060	9.8	784	>16.0	>1272	-0.03	0.23	300	8.3
Sm2Co17 26B	26	211.3	10.6	1060	9.8	784	>20.0	>1590	-0.03	0.23	300	8.3
Sm2Co17 26H	26	211.3	10.6	1060	9.8	784	>26.0	>2067	-0.03	0.23	300	8.3
Sm2Co1728A	28	227.5	10.9	1090	10	800	>16.0	>1272	-0.03	0.23	300	8.3
Sm2Co17 28B	28	227.5	10.9	1090	10	800	>20.0	>1590	-0.03	0.23	300	8.3
Sm2Co17 28H	28	227.5	10.9	1090	10	800	>26.0	>2067	-0.03	0.23	300	8.3
Sm2Co17 30A	30	243.8	11	1100	10.2	816	>16.0	>1272	-0.03	0.23	300	8.3
Sm2Co17 30B	30	243.8	11.2	1120	10.2	816	>20.0	>1590	-0.03	0.23	300	8.3
Sm2Co17 32	31	251.8	11.5	1150	10	800	>15.0	>1192	-0.03	0.23	300	8.3
Sm2Co17 25H	25	203.2	10.5	1050	9.7	776	>35.0	>2782	-0.03	0.23	375	8.3

Products Description

Usage Scenarios

Similar Products

Company Information

Our Certificate

Production Process

Logistics And Trade

Chongqing great well magnet Co. ,ltd is a professional manufacturer and exporter of all kinds of high performance Magnet Assembly, Ferrite and NdFeB magnet and its correlative plastic injection, stainless shaft, ceramic shaft and magnetization machine. Now we own 402 employees, 36 of them are for technical and management. Our products are highly applied to magnetic driving pump, drainage pump of washing machine and dishwasher, aquatic sinking pumps, Start-motors,

electronic timer, controller, frequency conversion motor, brushless DC motor, electronic meter and so on. Our main export countries and regions are Spain, America, German, South Korea, and Taiwan.

Manage system:

We have introduced into the advanced foreign production technique and management experiences, and got the ISO9001：2015 for ferrite and NdFeB factory,

Production capability:

Now we have 7 main kinds. The annual production capability is over 10,000tons for ferrite magnet, 3,000 ton for NdFeB Magnet

We can do both OEM/ODM for magnet and magnet assembly.
