Arc Smco Samarium Cobalt Magnet Disc Industrial Motor Use

Ask Lasest Price
Model Number :	SmCo Magnet
Supply Ability :	5000000 Set/Sets per Month
Price :	$0.02 - $10.00 / Set

Add to Cart

Product Details
Company Profile

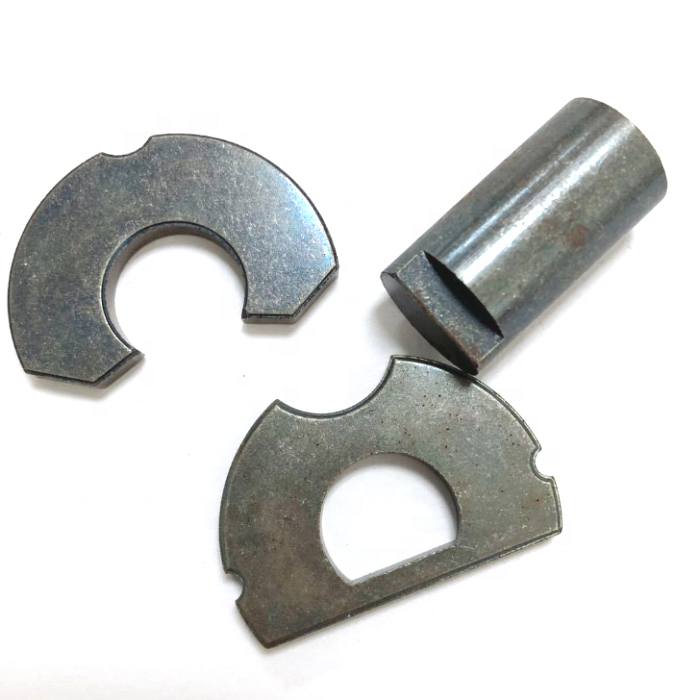

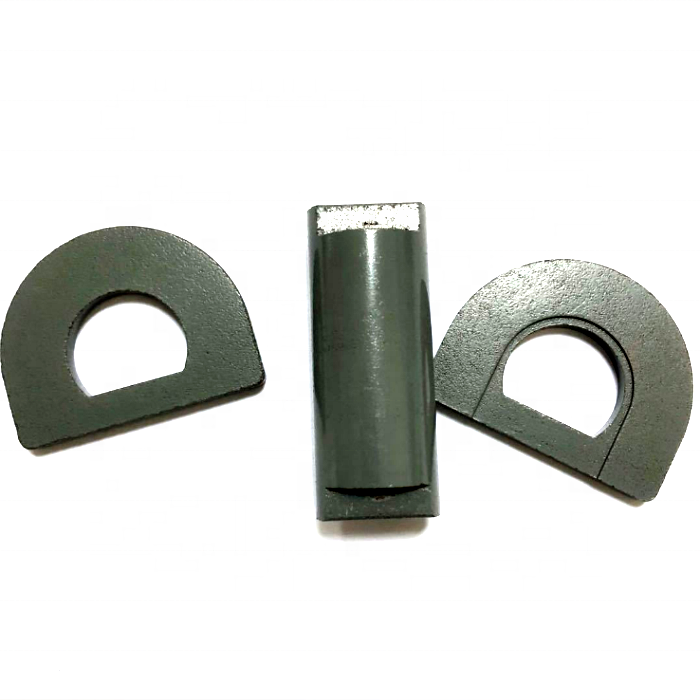

Arc Smco Samarium Cobalt Magnet Disc Industrial Motor Use

Manufacturer Customized Good Quality Arc Smco Magnets Samarium Cobalt

The advantages of SmCo permanent magnets:

SmCo magnets are not as powerful as super neodymium magnets, but they have some obvious advantages. SmCo magnets have a wider operating temperature range, superior temperature coefficient and greater corrosion resistance. It is better than the special high temperature neodymium magnet at 150 ℃.

SmCo magnets not only perform well at high temperatures, but also maintain their magnetism even at temperatures below absolute zero (- 273 ℃), so they are very popular in low temperature applications.

Because most grades of samarium cobalt contain little iron, they have excellent corrosion resistance.

Product Paramenters

Product Name	Manufacturer Customized Good Quality Arc Smco Magnets Samarium Cobalt
Product Materials	Samarium Cobalt Magnet
Product Materials	Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet
Size of the products	Accept Customized
Working Temp	350°C
Magnetic direction	Through thickness direction, the flat surface is magnetic field.
Vertical pull force	can pull on metal board more than 19pieces A4 paper
Testing method	manual testing
Application	Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail

Specification

Grade	Max. Energy Product		Remanence		Coercive Force				Rev. Temp. Coeff.		Working Temp.	Density
	(BH)_max		B_r		H_c		H_ci		B_d	H_d	T_w	D
	MGOe	kJ/m³	kG	mT	kOe	kA/m	kOe	kA/m	%/°C	%/°C	°C	g/cm³
SmCo₅ 16A	16	130	8.2	820	7.5	600	>16.0	>1270	-0.05	0.25	250	8.4
SmCo₅ 16B	16	130	8.2	820	7.5	600	>20.0	>1590	-0.05	0.25	250	8.4
SmCo₅ 18A	18	146.3	8.7	870	8.2	656	>16.0	>1272	-0.05	0.25	250	8.4
SmCo₅ 18B	18	146.3	8.7	870	8.2	656	>20.0	>1590	-0.05	0.25	250	8.4
SmCo₅ 20A	20	162.5	9	900	8.6	690	>16.0	>1272	-0.05	0.25	250	8.4
SmCo₅ 20B	20	162.5	9	900	8.6	690	>20.0	>1590	-0.05	0.25	250	8.4
SmCo₅ 22A	22	178.8	9.5	950	9.1	728	>16.0	>1272	-0.05	0.25	250	8.4
SmCo₅ 22B	22	178.8	9.5	950	9.1	728	>20.0	>1590	-0.05	0.25	250	8.4
Sm₂Co₁₇ 24	24	195	10	1000	9.5	760	>20.0	>1590	-0.03	0.23	300	8.3
Sm₂Co₁₇ 26A	26	211.3	10.6	1060	9.8	784	>16.0	>1272	-0.03	0.23	300	8.3
Sm₂Co₁₇ 26B	26	211.3	10.6	1060	9.8	784	>20.0	>1590	-0.03	0.23	300	8.3
Sm₂Co₁₇ 26H	26	211.3	10.6	1060	9.8	784	>26.0	>2067	-0.03	0.23	300	8.3
Sm₂Co₁₇28A	28	227.5	10.9	1090	10	800	>16.0	>1272	-0.03	0.23	300	8.3
Sm₂Co₁₇ 28B	28	227.5	10.9	1090	10	800	>20.0	>1590	-0.03	0.23	300	8.3
Sm₂Co₁₇ 28H	28	227.5	10.9	1090	10	800	>26.0	>2067	-0.03	0.23	300	8.3
Sm₂Co₁₇ 30A	30	243.8	11	1100	10.2	816	>16.0	>1272	-0.03	0.23	300	8.3
Sm₂Co₁₇ 30B	30	243.8	11.2	1120	10.2	816	>20.0	>1590	-0.03	0.23	300	8.3
Sm₂Co₁₇ 32	31	251.8	11.5	1150	10	800	>15.0	>1192	-0.03	0.23	300	8.3
Sm₂Co₁₇ 25H	25	203.2	10.5	1050	9.7	776	>35.0	>2782	-0.03	0.23	375	8.3

Products Description

Arc Smco Samarium Cobalt Magnet Disc Industrial Motor Use

Usage Scenarios
